1.8 Transform SEGY to WDF
The WDF file is a seismic data file, which is specially designed for WiseCloud.
Step 1
As shown in Fig.1-8-1, click the icon
to open the dialog as Fig.1-8-2.
Step 2
Click "Add" and select the file "vib_eg_Encrypted.sgy"(Fig.1-8-2), then click "OK" to start the job(Fig.1-8-3), from which the job information is output as in Fig.1-8-4.
The WDF file "vib_eg_Encrypted.sgy_8ms_1byte.wdf" will be created.

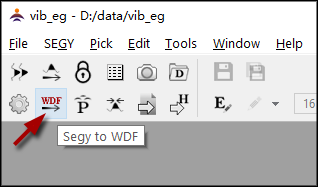

Fig.1-8-1 The icon of "SEGY to WDF" in the toolbar

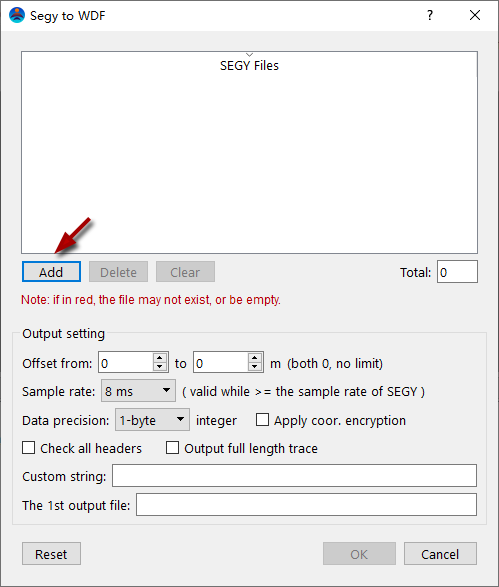

Fig.1-8-2 The dialog of "SEGY to WDF"

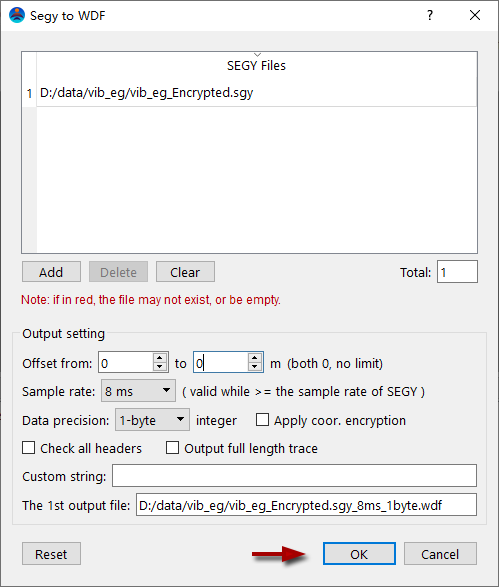

Fig.1-8-3 Add the SEGY file to be transformed

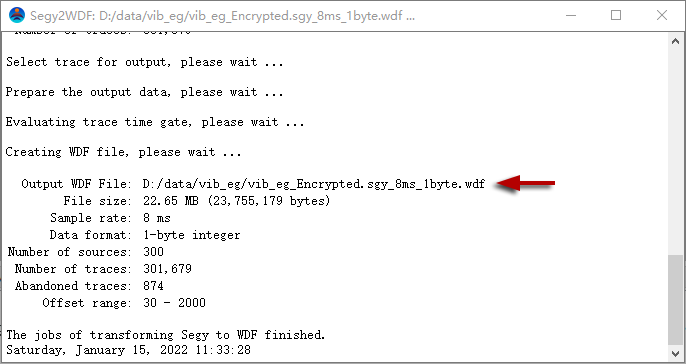

Fig.1-8-4 The job information of SEGY2WDF
